Allegro
Lifting Hoist, Ansa Sonata 150, Electric Leg (SWL150Kg)
How to get it
Out of stock
We will gladly assist with returns and exchanges of this product in accordance with our returns and exchanges policy.
Product Overview

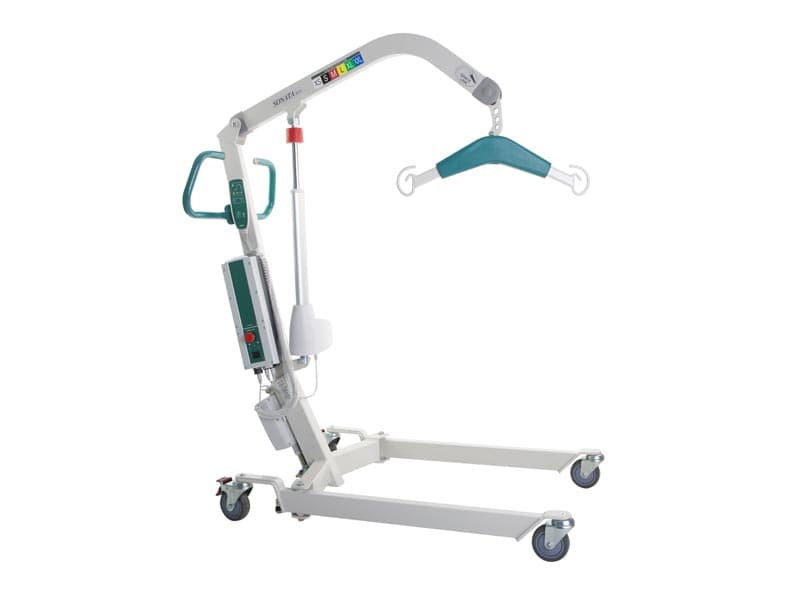

The Allegro Sonata 150 is compact patient handling equipment developed for full-body transfers in homes and care environments where manoeuvrability matters. With a 150 kg safe working load and electric leg adjustment, it can assist carers with transfers from the floor, bed or chair while accommodating different furniture widths and room layouts.
SPACELINK™ technology creates additional space around the user and permits 360-degree rotation at full lift height, supporting more controlled positioning throughout the transfer. Its relatively compact frame makes this patient transfer equipment suitable for home care, rehabilitation, hospitals and aged care homes with limited operating space.
The Sonata 150 can be configured with compatible sling attachments, including a padded spreader bar, pivot frame, tri-hook yoke or four-point yoke, with an optional weighing device also available. This flexibility allows occupational therapists and care teams to tailor the safe patient handling equipment to the user’s assessed needs, sling requirements and transfer plan.
Product Features
- Lightweight compact mobile patient lifting hoist
- Designed for domestic and institutional use
- Durable steel construction
- SpaceLink® Technology
- Outstanding lifting range
- Optimised spacial area for carer and patient
- Enhanced floor lifting capability
- Interchangeable spreader bar and pivot frame configuration
- Ergonomically designed push handle
- Powered leg adjustment
- 100mm castors
- Full selection of slings and accessories
- Designed and tested to ASA ISO 10535-2002
- Australian made

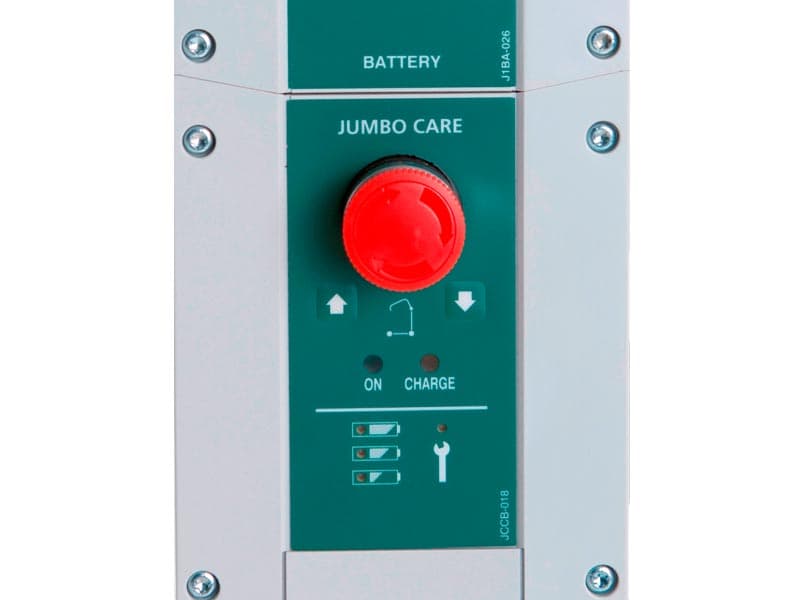

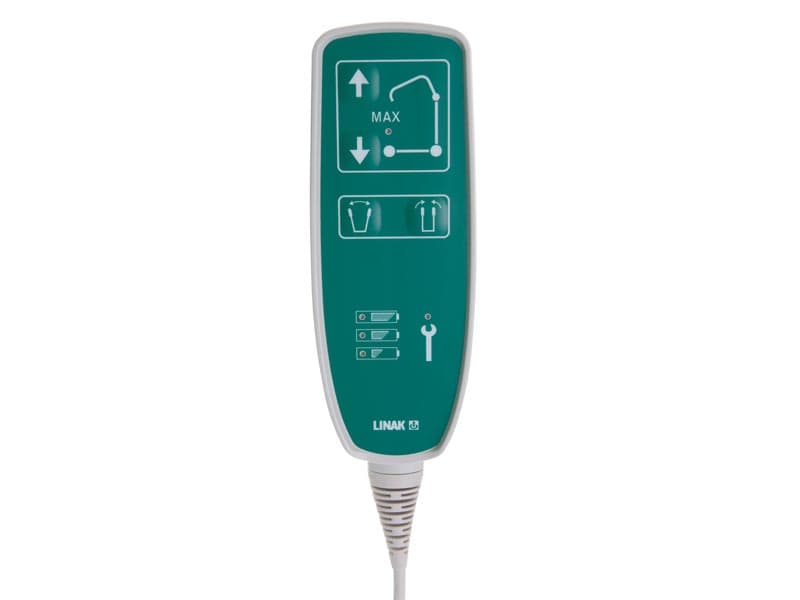

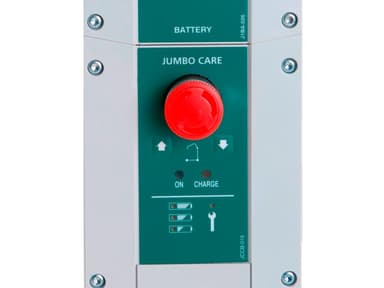

- Features Linak Jumbo Care advanced diagnostic control system
- Improved servicing schedule
- Anti-entrapment feature
- Emergency stop button
- 150kg safe working load
- Please note a yoke must be purchased separately
Product Specifications
| Item | Lifting Hoist |
| Brand | Allegro |
| Model | Sonata 150 |
| Base Length (mm) | 1100 |
| Base Width Adjustment (mm) | Electric |
| External Base Width Closed (mm) | 670 |
| External Base Width Open (mm) | 1075 |
| Hoist Reach at Max Height (mm) | 515 |
| Internal Base Width Closed (mm) | 570 |
| Internal Base Width Open (mm) | 970 |
| Max Height Yoke (mm) | 1735 |
| Max Hoist Reach (mm) | 865 |
| Max User Weight (kg) | 150 |
| Min Height Yoke (mm) | 400 |
| Min Hoist Reach (mm) | 515 |
| Min Storage Height (mm) | 1250 |
| Under Base Height (mm) | 55 |
| Under Bed Clearance (mm) | 130 |
| Unit Weight (kg) | 41 |
| Warranty (months) | 24 |
