Product Overview

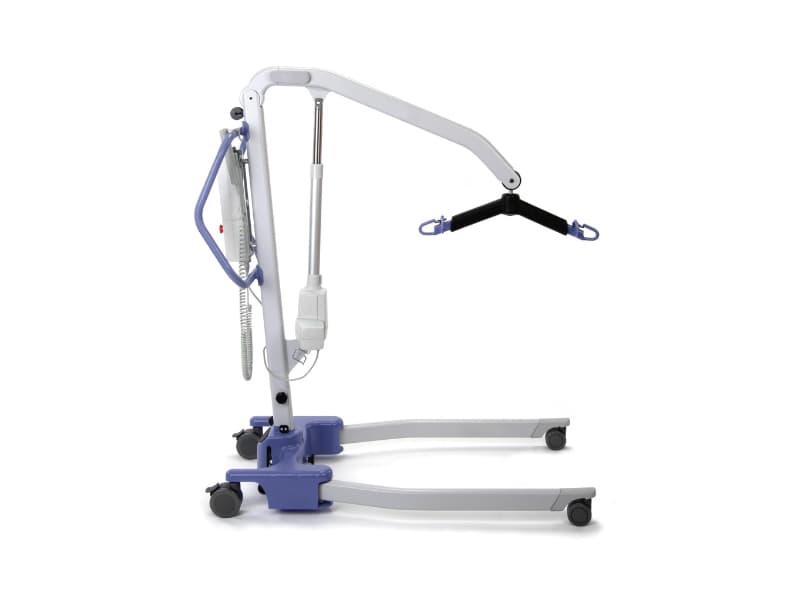

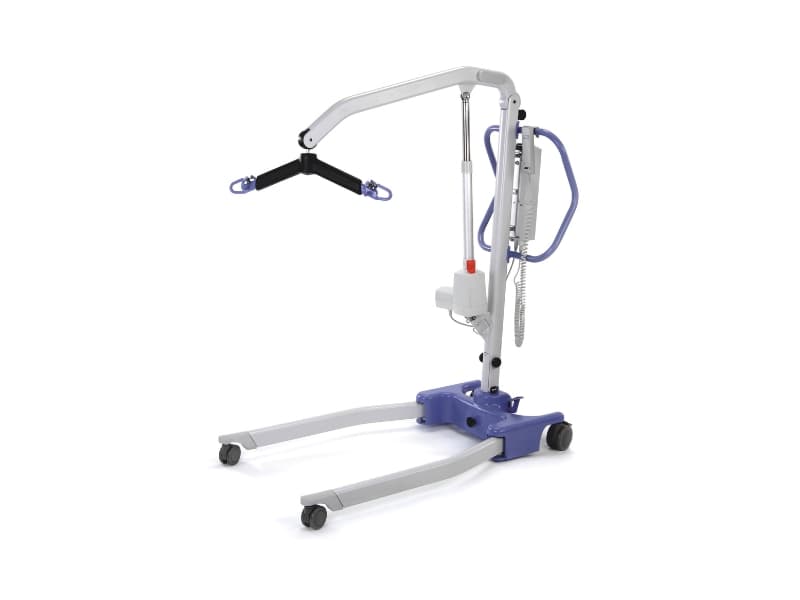

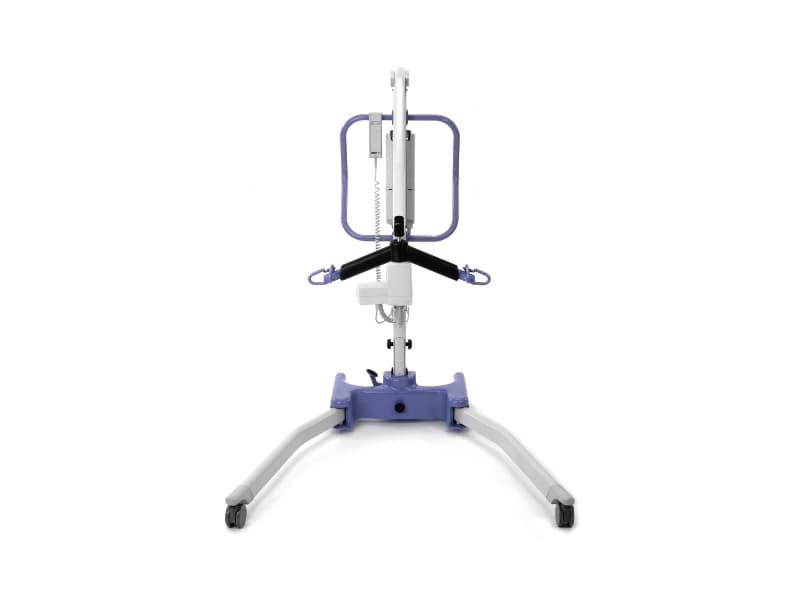

The Oxford Advance is portable patient handling equipment designed for full-body transfers where space, storage and transportability are important. Its 155 kg safe working load and broad lifting range support chair-to-chair, bed-to-chair, floor-to-chair and chair-to-bath transfers in private homes, rehabilitation settings and aged care homes.

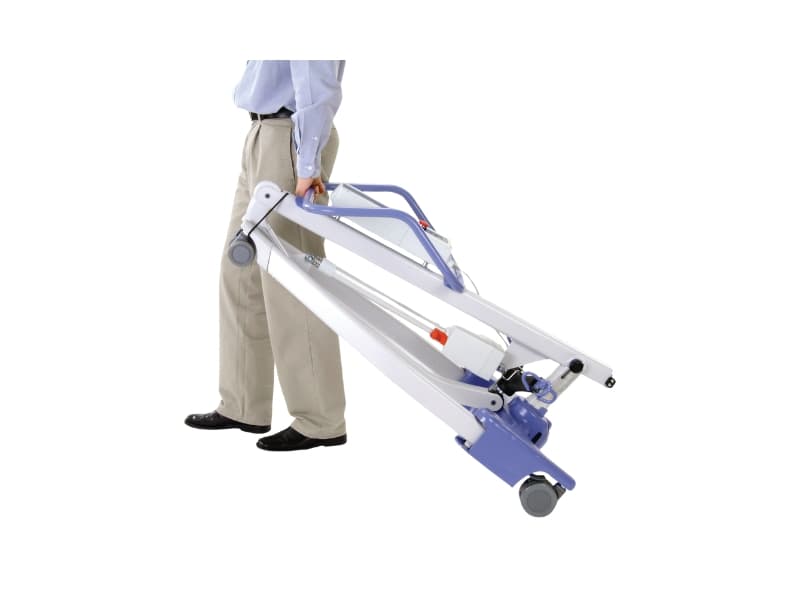

The tool-free folding frame forms a stable, self-supporting shape for storage and can fit into many vehicle boots for transport between locations. Swan-neck legs help the hoist move closer to wide chairs, wheelchairs and commodes, while the manual leg-opening mechanism and ergonomic push handle support controlled positioning around furniture.
An onboard Smartâ„¢ Monitor records lift activity, overloads and service intervals to assist with maintenance planning and equipment safety. The Oxford Advance can also accept an optional four-point positioning cradle for broader sling compatibility, although fitting this accessory removes the folding function. These features make it versatile patient transfer equipment for care teams seeking compact safe patient handling equipment.
Product Features
- Lightweight folding mobile patient lifting hoist
- Designed for domestic and institutional use
- Lightweight aluminium construction
- Triangular folding design

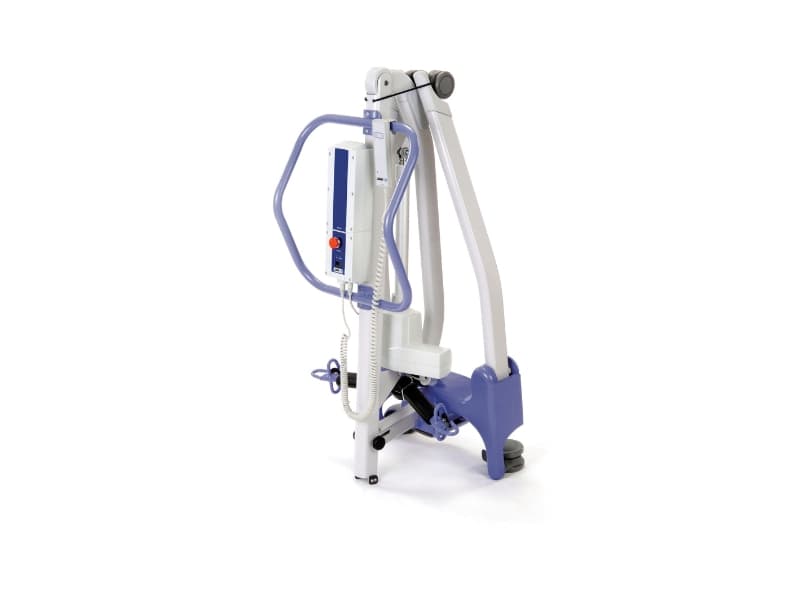

- Stands unaided when folded
- Unique 'swan neck' leg enables leg to span around large obstacles
- Unique push foot pad to initiate forward movement on difficult floor surfaces
- Single hook yoke standard
- Interchangeable spreader bar and pivot frame configuration
- Oversized push handle for greater manoeuvrability
- Easy to use foot pedal for leg adjustment
- 100mm rear castors
- Full selection of slings and accessories
- Features Linak actuators
- Emergency stop button
- 155kg safe working load
Product Specifications
| Item | Lifting Hoist |
| Brand | Oxford |
| Model | Advance |
| Base Length (mm) | 1250 |
| Base Width Adjustment (mm) | Manual |
| External Base Width Closed (mm) | 670 |
| External Base Width Open (mm) | 1080 |
| Hoist Reach at Max Height (mm) | 650 |
| Internal Base Width Closed (mm) | 570 |
| Internal Base Width Open (mm) | 1000 |
| Max Height Yoke (mm) | 1690 |
| Max Hoist Reach (mm) | 835 |
| Max User Weight (kg) | 155 |
| Min Height Yoke (mm) | 390 |
| Min Hoist Reach (mm) | 350 |
| Min Storage Height (mm) | 1360 |
| Under Base Height (mm) | 30 |
| Under Bed Clearance (mm) | 115 |
| Unit Weight (kg) | 32 |
| Warranty (months) | 24 |
| Colour | Purple |
